    An Advanced PET/CT to Empower Tomorrow for All uMI Panvivo Powered by uExcel Platform

    Empowering Tomorrow for All

    uMI Panvivo is a high performance PET/CT platform that moves state-of-the-art innovative advancement to clinical reality. It advances diagnostic precision with industry-leading NEMA spatial resolution of 2.9mm and time of fight (TOF) timing resolution of 219 picosecond (ps), while it's air-cooled compact design make it more accessible to all. The human-centric design and fully AI-empowered workflow of uMI Panvivo deliver care to every patient while keeping the user in mind. Built on its scalable platform, uMI Panvivo's powerful design builds the bridge toward long-term and sustainable success.

    Precision for All

    Driven by precision medicine and personalized care, uMI Panvivo offers the top-tier performance based on state-of-the-art detector technology and highly integrated system for better diagnostic confidence and capabilities.

    Top-tier Performance

    2.9 mm

    Exceptional NEMA spatial resolution delivered by the finest crystal size of 2.76 mm in the industry.

    219 ps

    Leading TOF resolution that boosts small lesion detectability and clarity.

    Up to 181 cps/kBq¹

    High effective sensitivity that benefits from TOF gain leverages better diagnostic accuracy under low dose usage and fast scan time.

    Uncompromised Clarity
    • Revealing the Fine Details
    • Clarity with Fast Scan and Low Dose
    • Clarity Enhanced by TOF resolution

    High-definition (HD) resolution up to 1.6 mm

    High resolution image of 18F-FDG brain PET/CT scan

    10-min Total-body Imaging with Low Dose

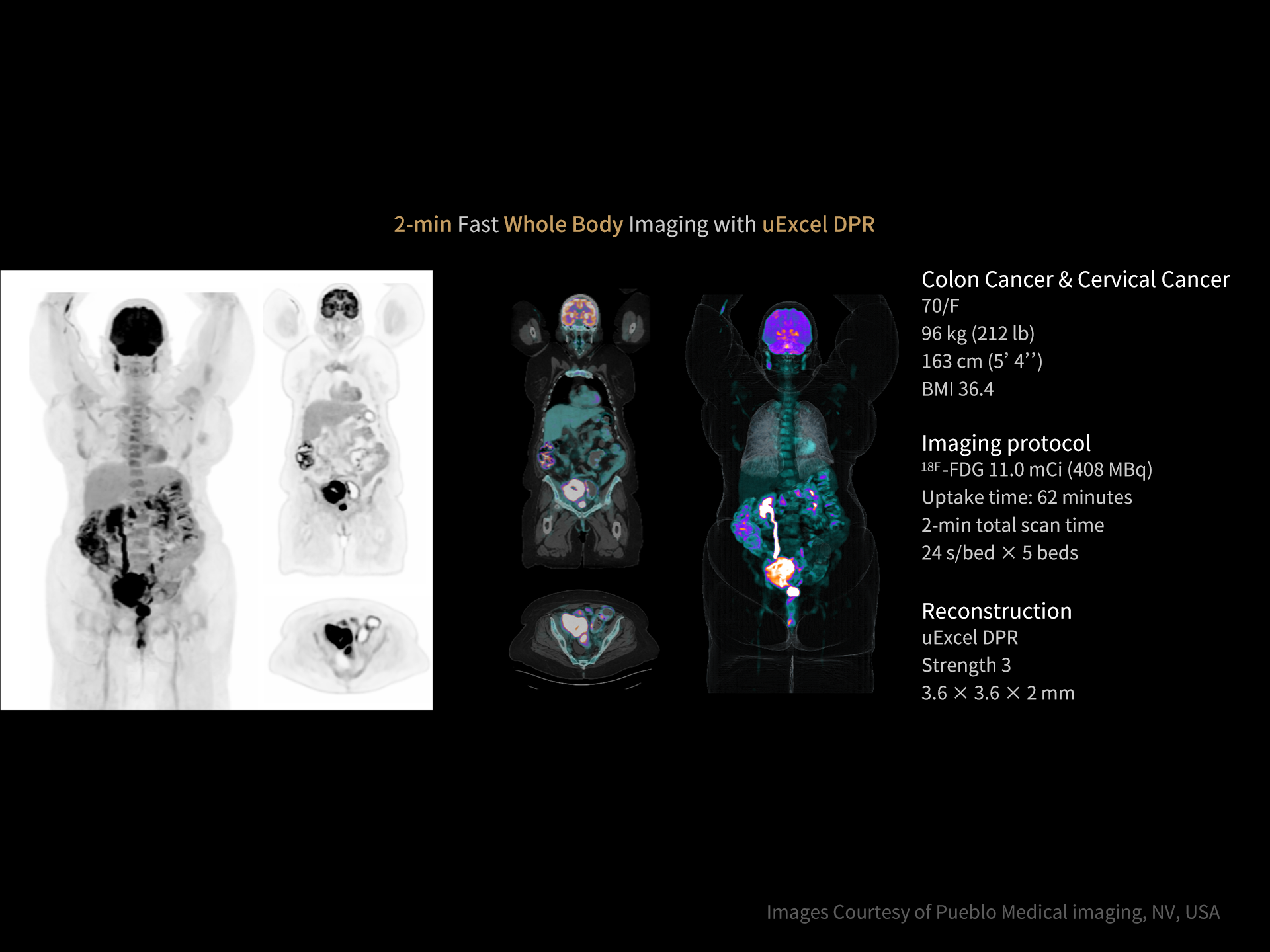

    Fast Whole-body Imaging Down to 2-min

    Low Dose Imaging of Large BMI Patient

    High TOF resolution of 219 ps enables better lesion detectability and quantitative accuracy

    Clear Visualization of lesion in 68Ga-PSMA imaging

    Care for All

    uMI Panvivo represents the very idea of care for all through incorporating patient-centric design and embracing power of Artificial Intelligence to enhance patient and user experience, and overall efficiency.

    AI-Powered Intuitive Workflow with uExcel

    A successful PET/CT exam requires a system that offers ease of operation with accuracy. uVision, an AI-powered technology, navigates the system to deliver a streamlined procedure with patient modeling, auto notification and isocenter positioning, improving the usability and workflow efficiency.

    EasyRange (Auto Planbox) automatically sets the scan range for targeted areas like the body, head, and heart, etc. according to the protocol selected, reducing the effort of manual selection and adjustment.

    uMI Panvivo's AI-powered OncoFocus provides a unified solution to reduce respiratory motion artifacts, ensuring accurate quantification and precise lesion measurements for more confident decision-making.

    NeuroFocus is a groundbreaking solution that corrects head motion artifacts without additional motion tracking devices to improve your diagnostic confidence and efficiency.

    uExcel DPR (Deep Progression Reconstruction) represents a breakthrough in PET imaging reconstruction method, leveraging advanced AI-driven iterative reconstruction to significantly reduce noise and enhance image contrast.

    uExcel uVision

    A successful PET/CT exam requires a system that offers ease of operation with accuracy. uVision, an AI-powered technology, navigates the system to deliver a streamlined procedure with patient modeling, auto notification and isocenter positioning, improving the usability and workflow efficiency.

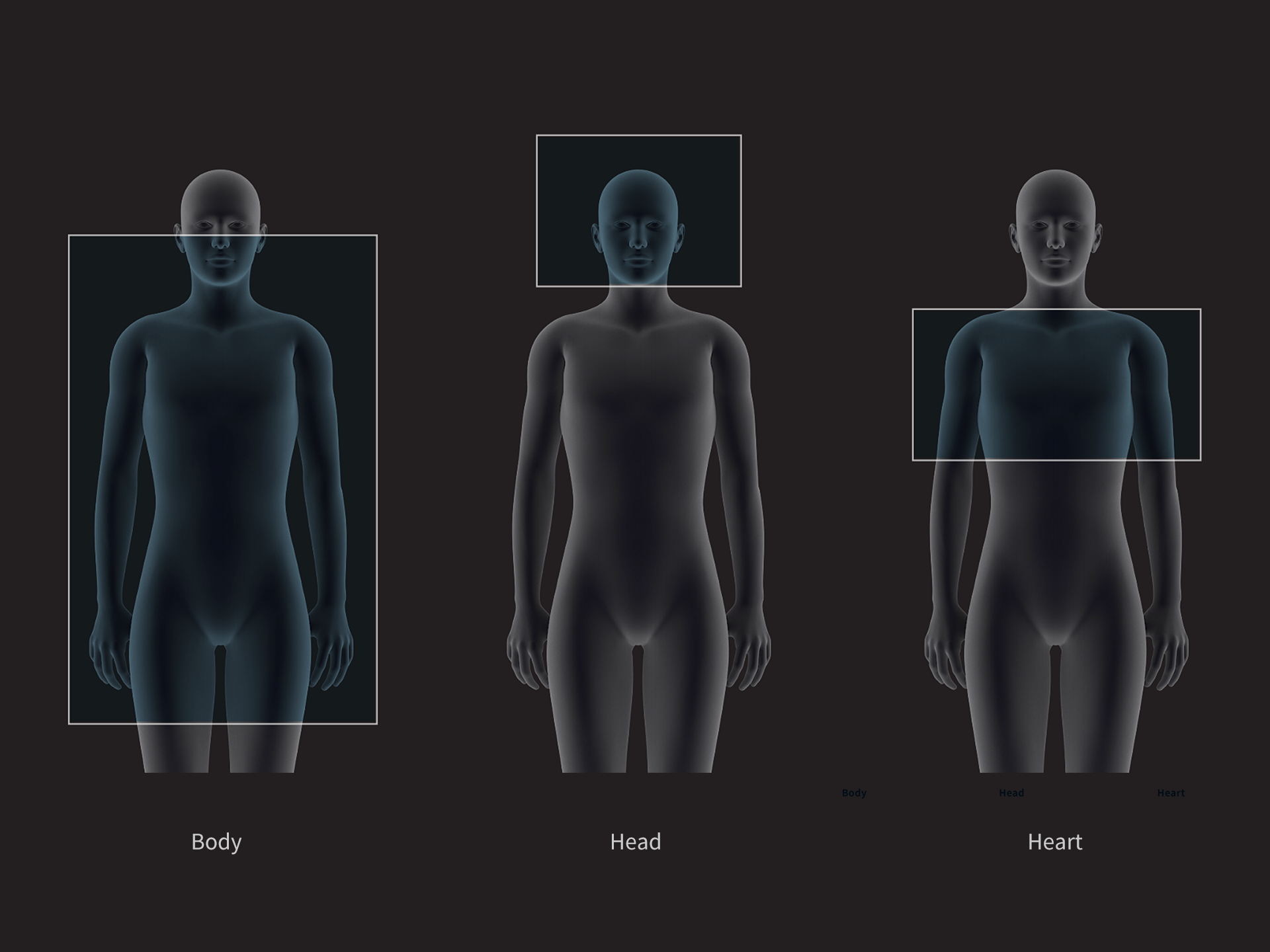

    EasyRange

    EasyRange (Auto Planbox) automatically sets the scan range for targeted areas like the body, head, and heart, etc. according to the protocol selected, reducing the effort of manual selection and adjustment.

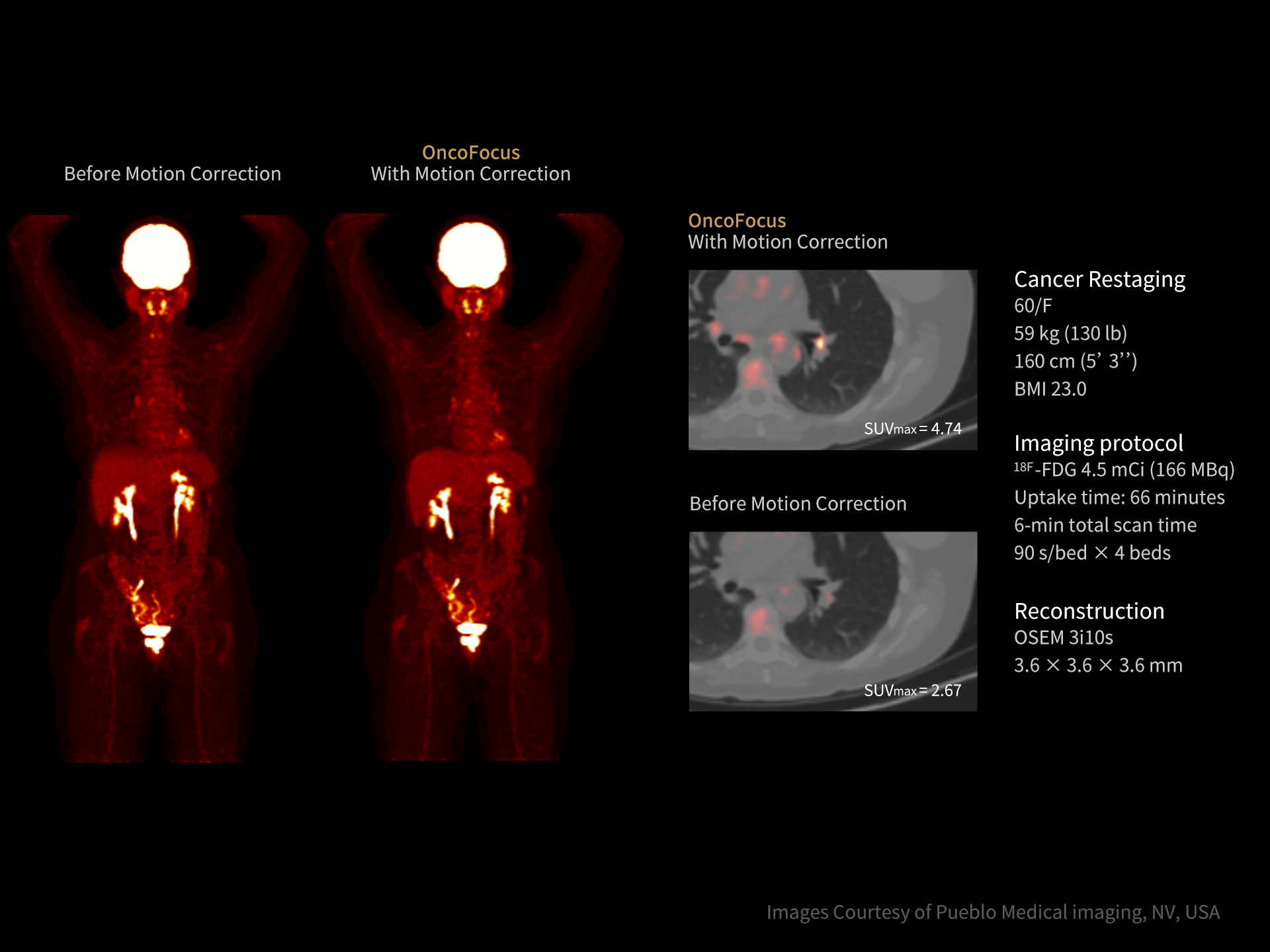

    uExcel OncoFocus²

    uMI Panvivo's AI-powered OncoFocus provides a unified solution to reduce respiratory motion artifacts, ensuring accurate quantification and precise lesion measurements for more confident decision-making.

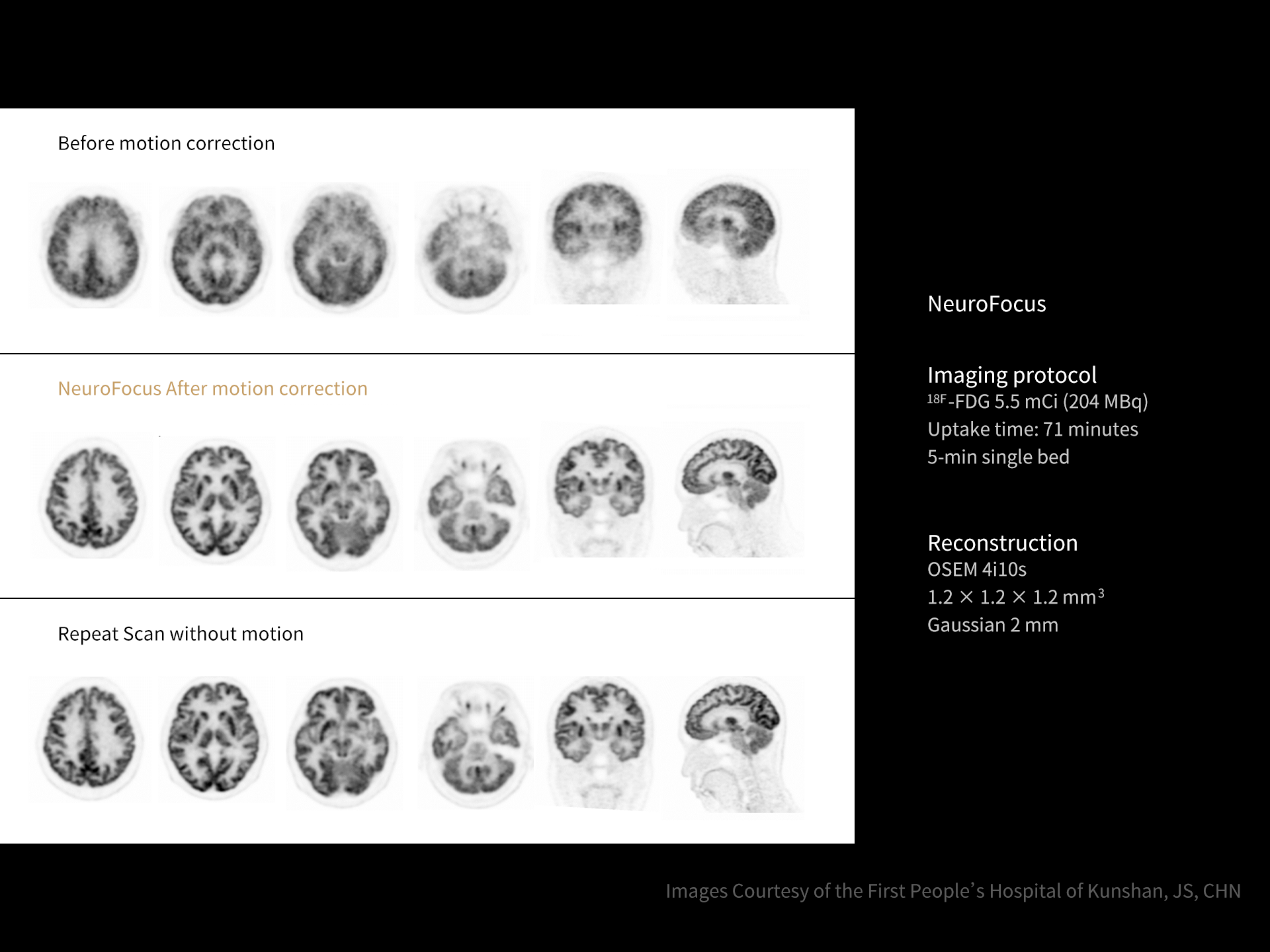

    uExcel NeuroFocus²

    NeuroFocus is a groundbreaking solution that corrects head motion artifacts without additional motion tracking devices to improve your diagnostic confidence and efficiency.

    uExcel DPR²

    uExcel DPR (Deep Progression Reconstruction) represents a breakthrough in PET imaging reconstruction method, leveraging advanced AI-driven iterative reconstruction to significantly reduce noise and enhance image contrast.

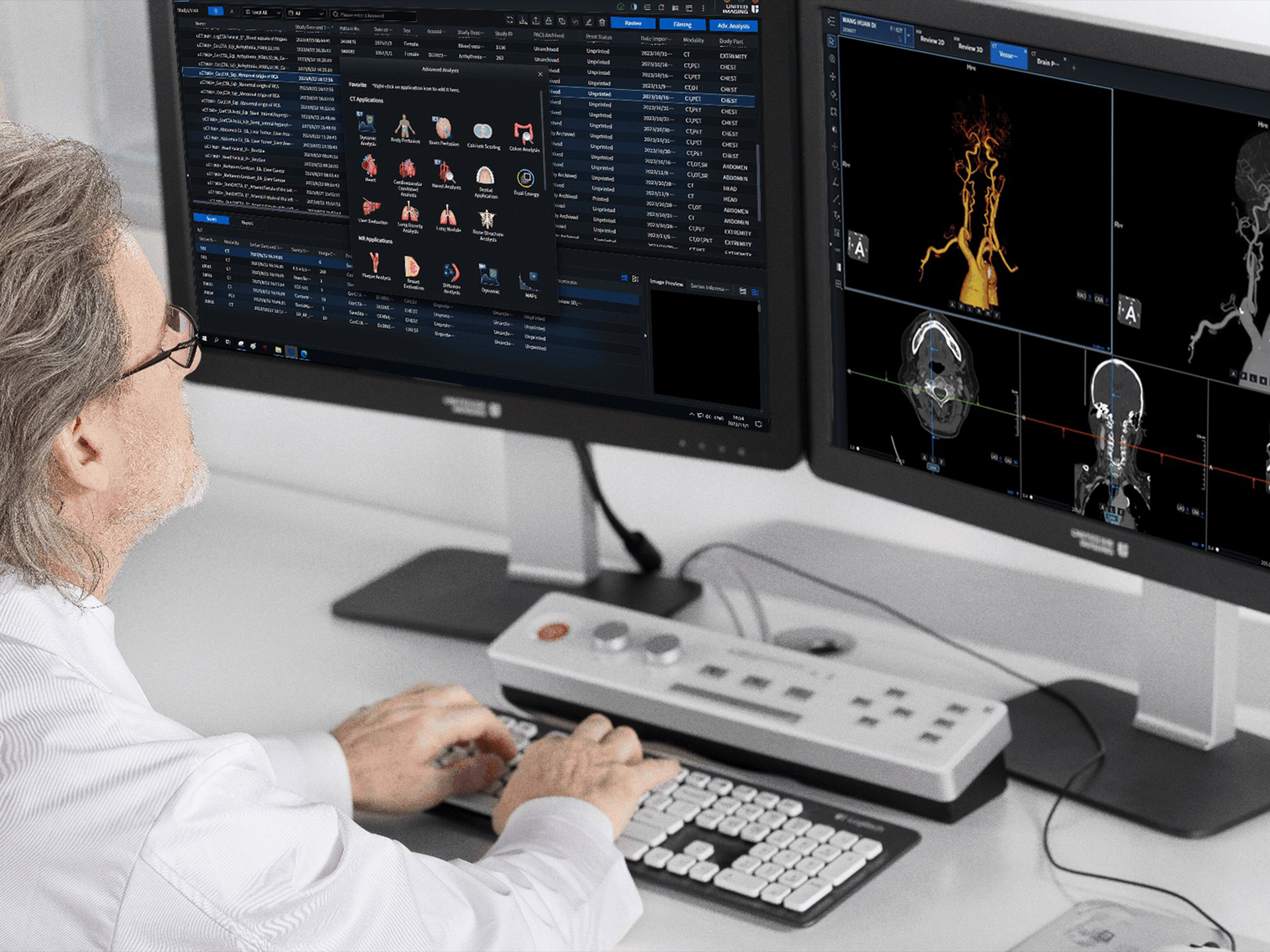

    AI-Powered Post-Processing Solution with uOmnispace

    Scalable modality or departmental, enterprise solution that adapts to your clinical and IT needs.

    Driving intelligent insights, precision evaluation in oncology and personalized theranostics with auto segmentation, reading and reporting²

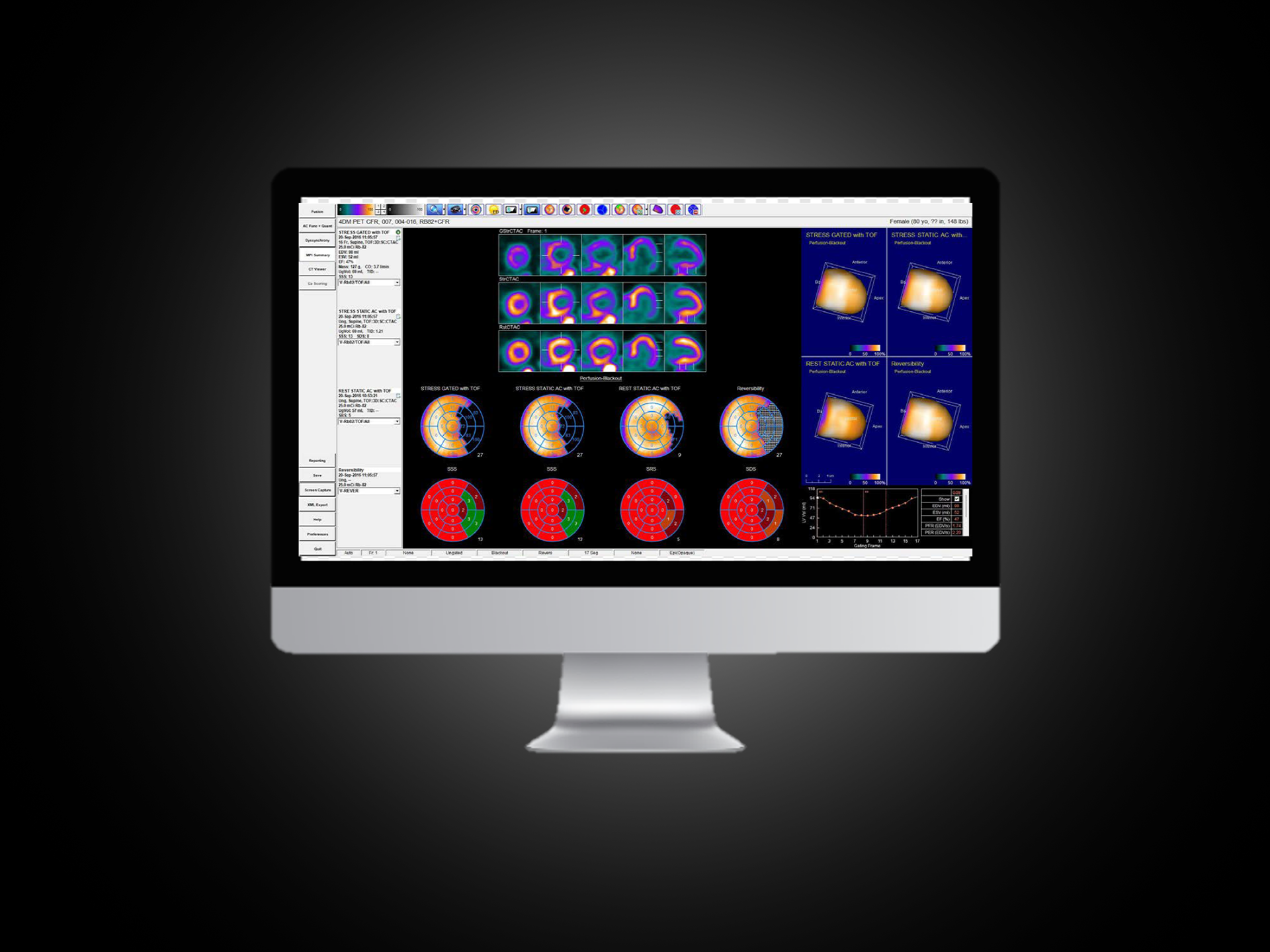

    Comprehensive cardiac quantification package for cardiac perfusion, function, and viability

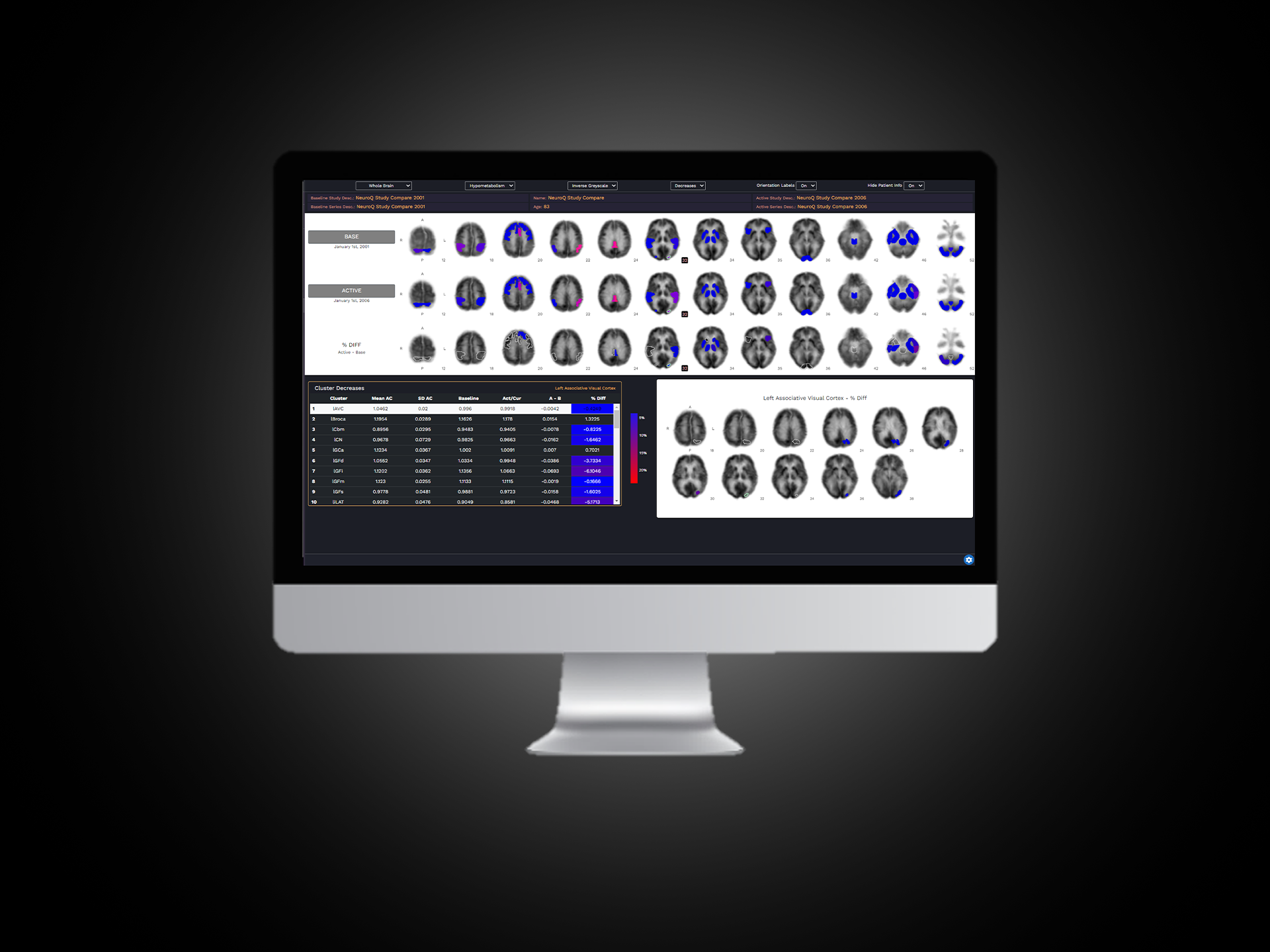

    Comprehensive brain quantification tools for neurodegenerative disease

    Easy access, scalable, and multi-vendor

    Scalable modality or departmental, enterprise solution that adapts to your clinical and IT needs.

    Enjoyable Scan Experience with Human-centric Design

    uMI Panvivo provides maximum tunnel clearance up to 59cm at the lowest table height, creating spacious room for larger patients and various accessories or postures.

    Purple, blue and white ambient lighting with breathing guide helps reduce patient anxiety and claustrophobia.

    The column will stop moving automatically if the feet or other objects are detected near or below the base to prevent any trapping or stuck.

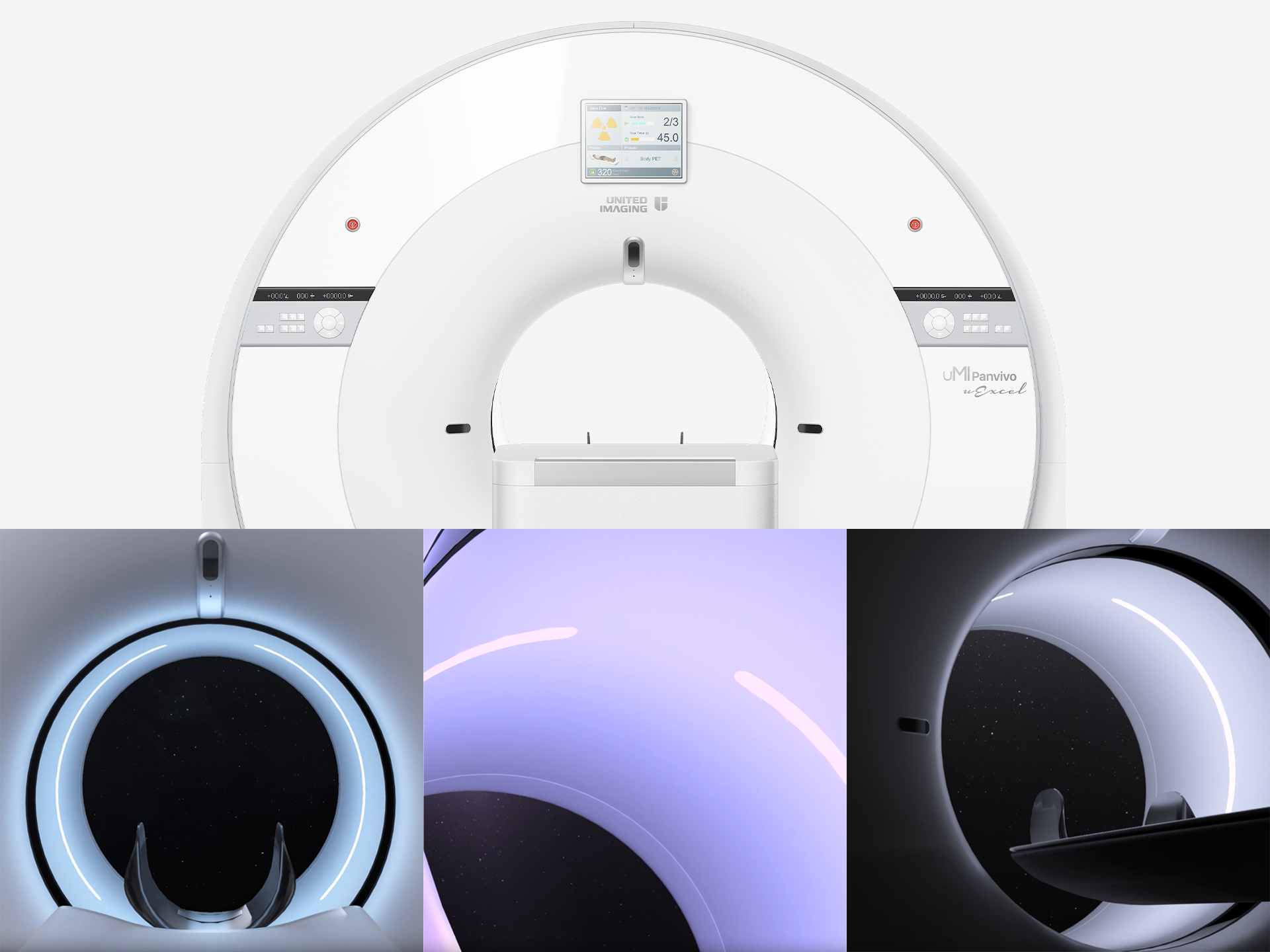

    Bigger tunnel clearance

    uMI Panvivo provides maximum tunnel clearance up to 59cm at the lowest table height, creating spacious room for larger patients and various accessories or postures.

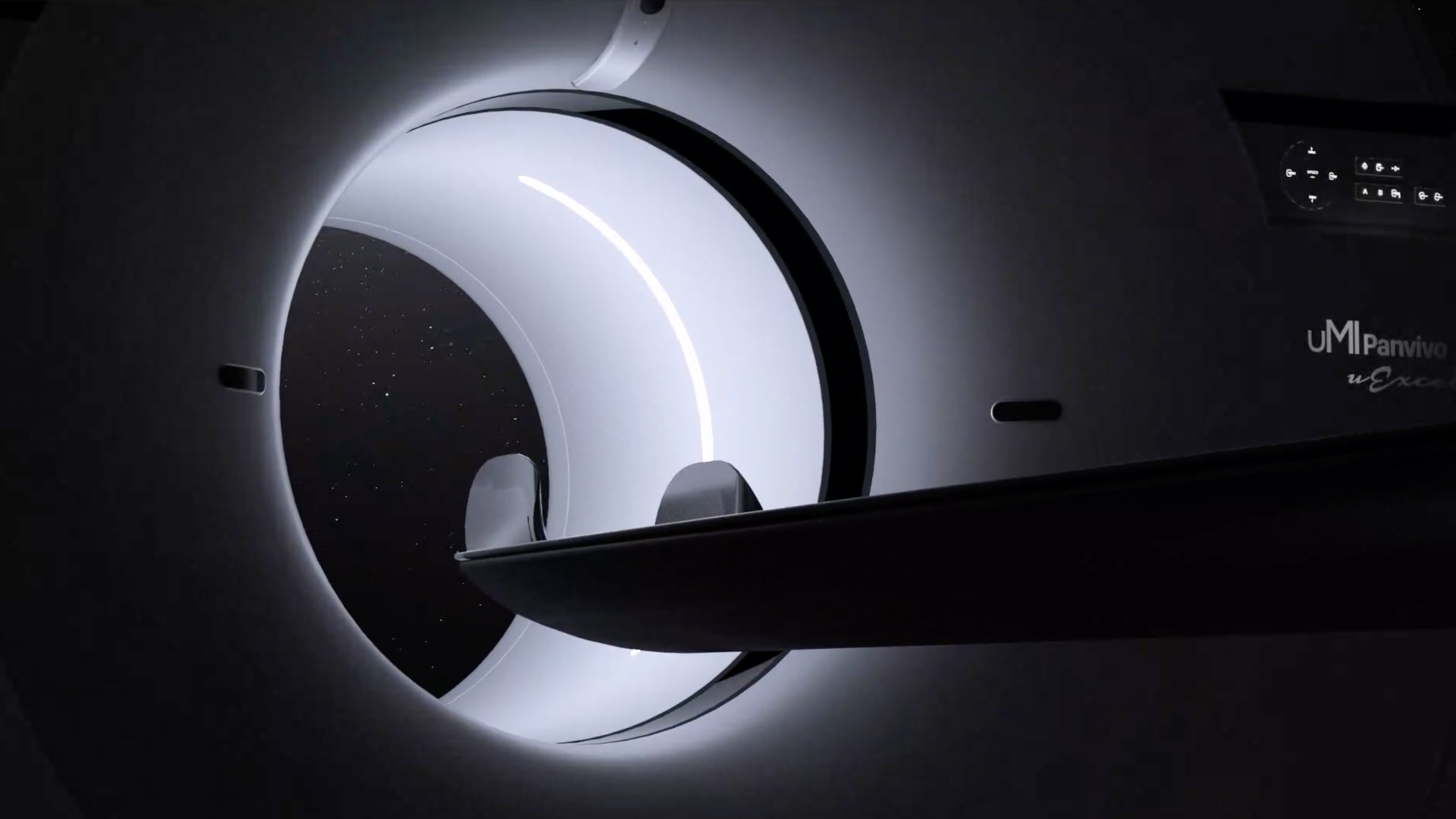

    Soothing Ambient Lighting

    Purple, blue and white ambient lighting with breathing guide helps reduce patient anxiety and claustrophobia.

    Anti-collision Design

    The column will stop moving automatically if the feet or other objects are detected near or below the base to prevent any trapping or stuck.

    Success for All

    uMI Panvivo aims to accompany you on the journey towards long-term and sustainable success.

    Expanding Clinical Versatility

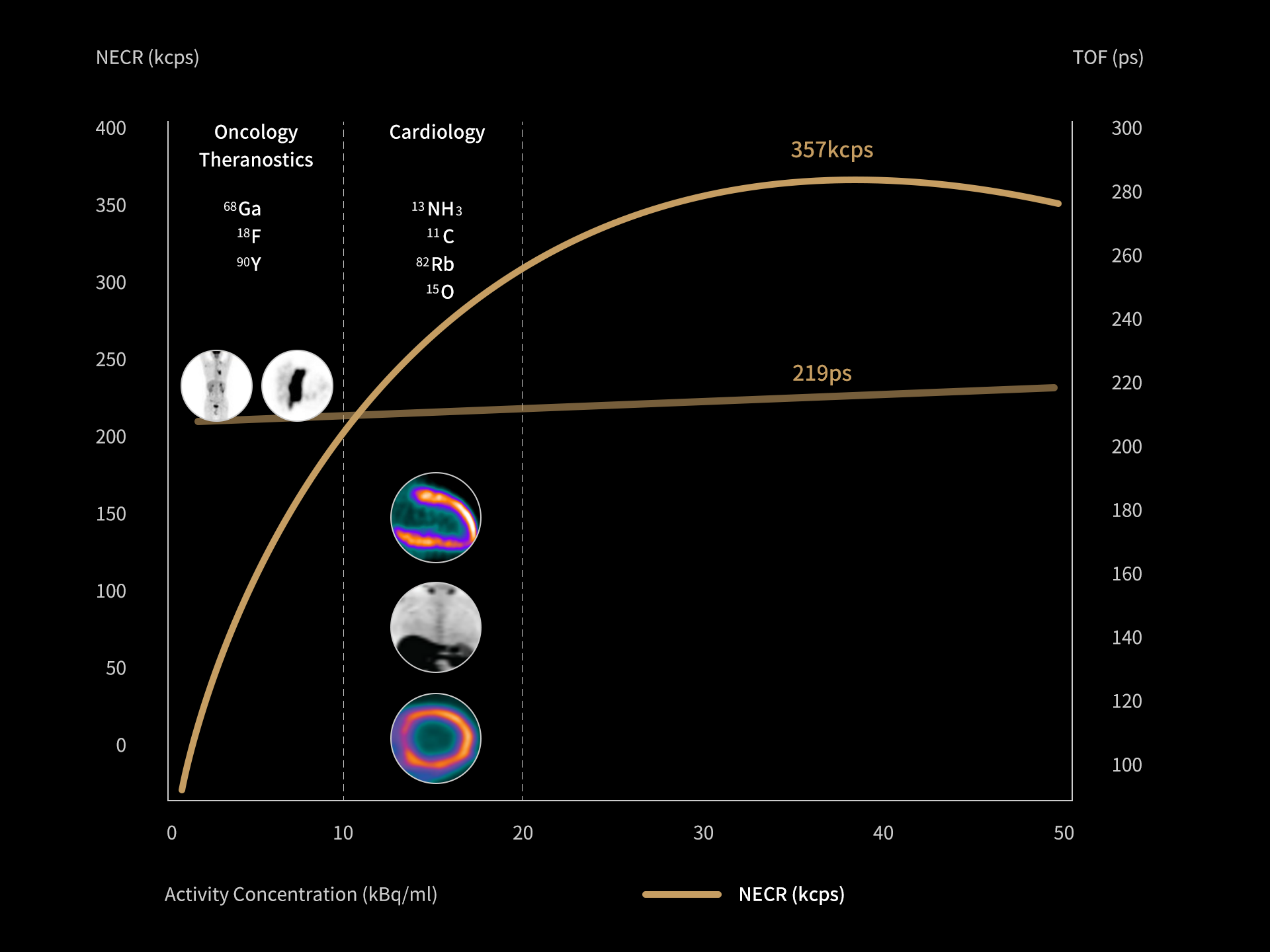

    High NECR performance supports precision imaging in various clinical fields

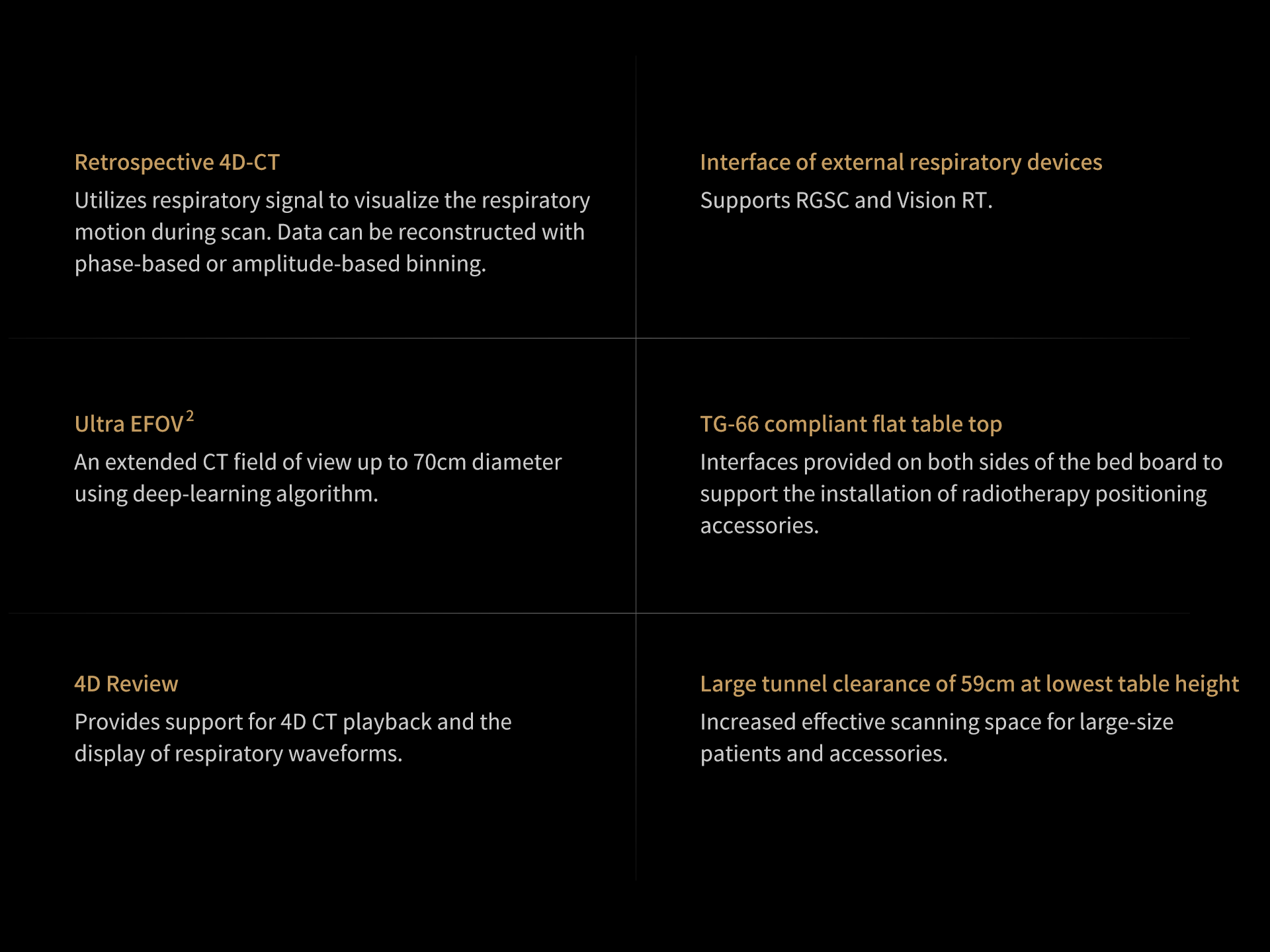

    The integrated features that extend clinical use beyond imaging and diagnosis

    Build Tomorrow with Adaptive Design





    Improved Accessibility Delivered by A Compact Structure





    Long-term Success with Consistency in Performance





    Scalable Future Built on A Scalable Platform

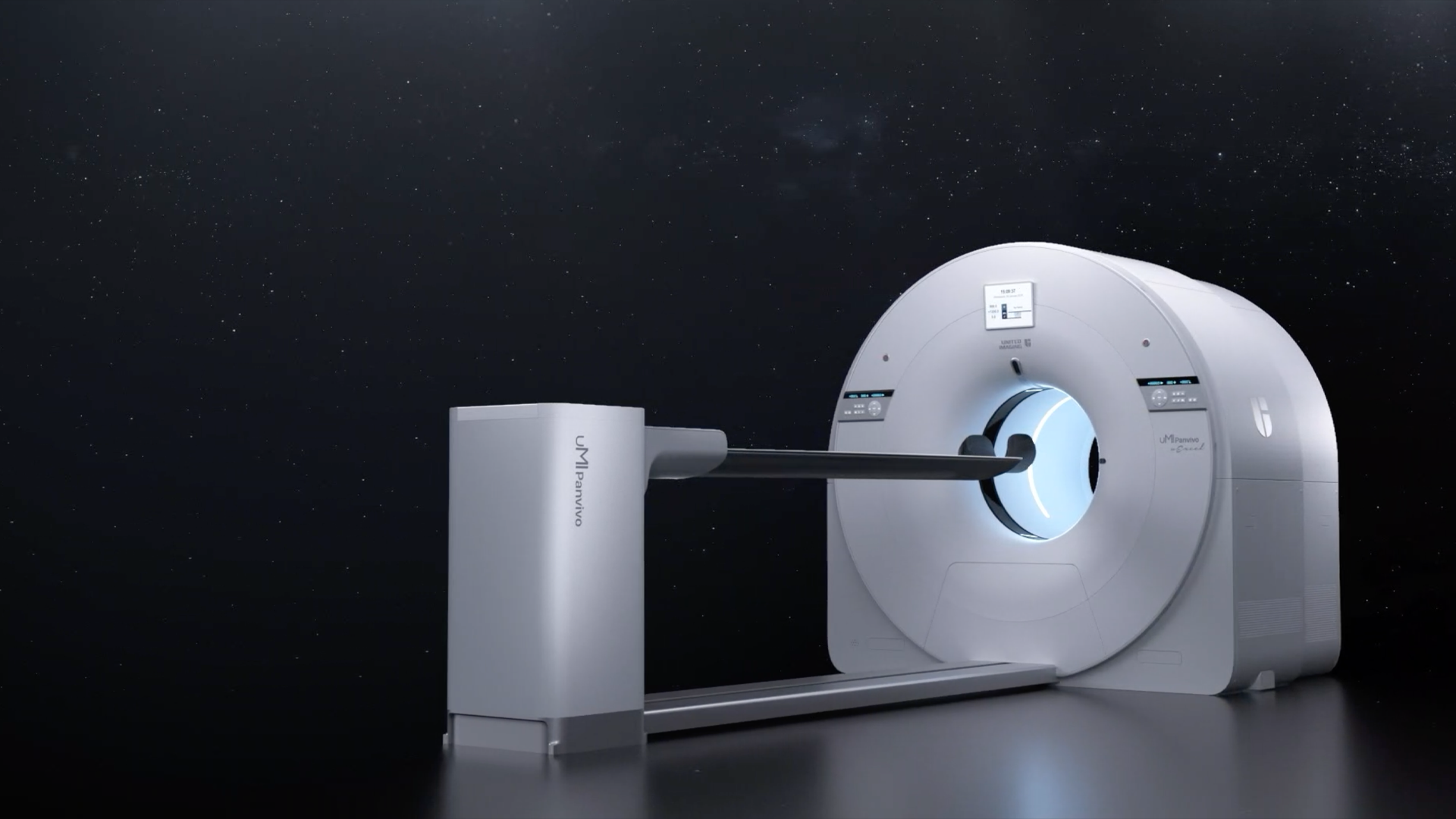

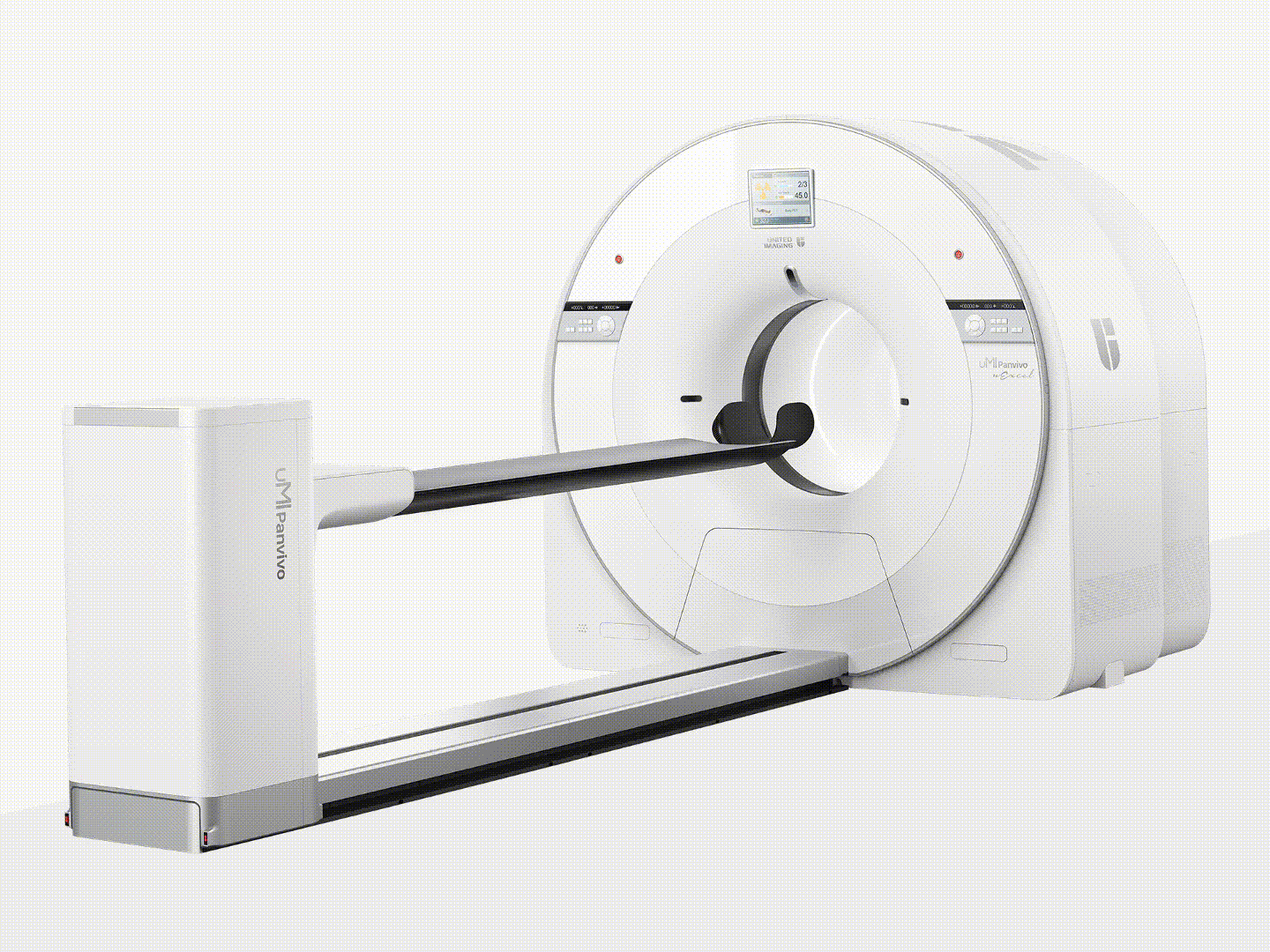

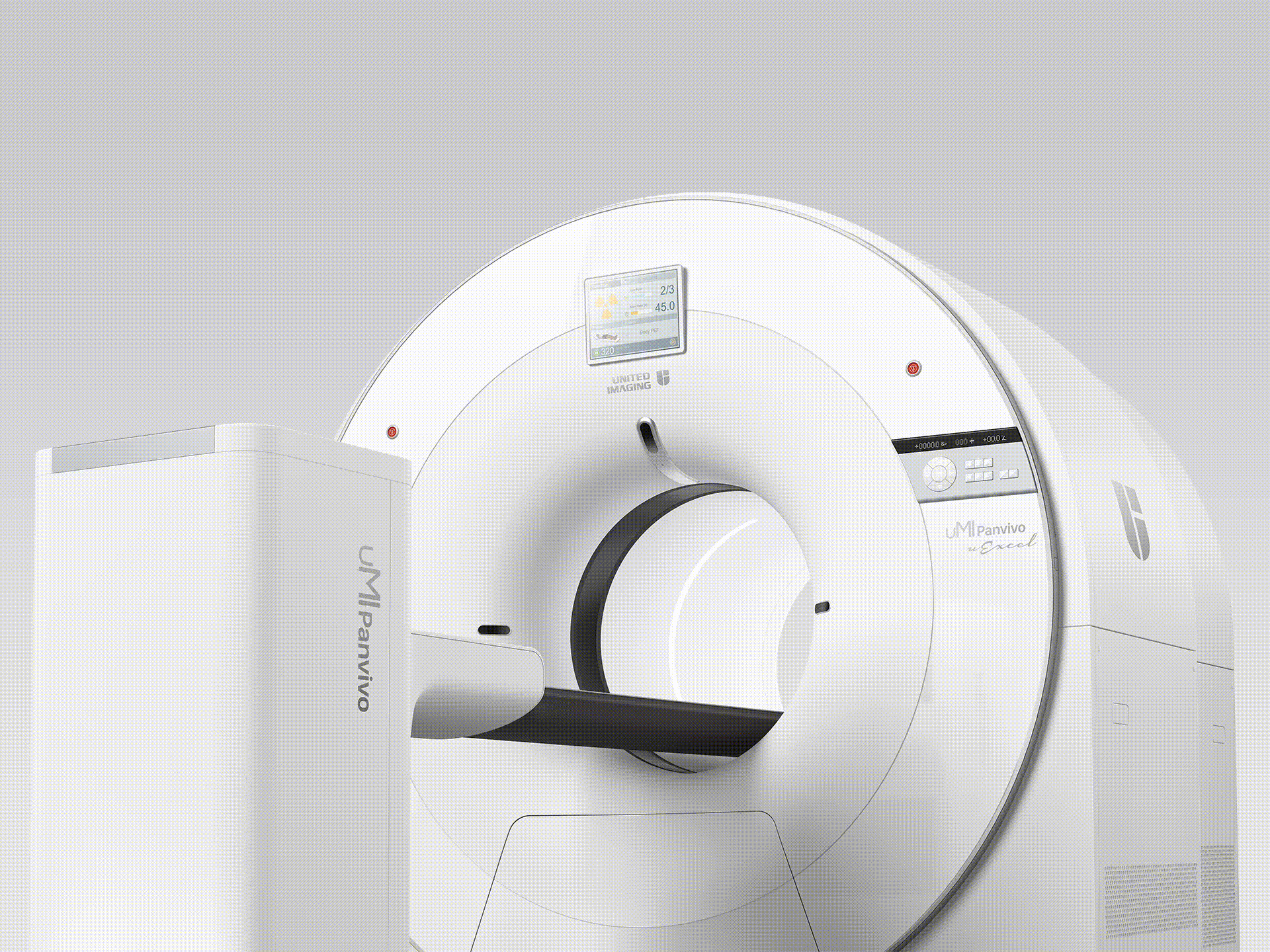

    uMI Panvivo

    uMI Panvivo is a powerful platform that enables diagnostic confidence, operational excellence with exceptional imaging capability, AI-powered workflow and compact and scalable design.

    0.3 s Rotation Speed

    Reduce total acquisition and breath hold times.

    100 kW Generator

    Provide high power output and reliable performance.

    250 kg (551 lbs) Weight Capacity with Anti-collision Mechanism

    To ensure a safer procedure, the column will stop automatically once an object or foot being detected under the base.

    4 cm CT Detector Coverage

    0.5 mm × 80 rows with 3D collimator grid up to 160 slices/rotation.

    AI-assisted Patient Positioning

    uExcel uVision, an AI-powered workflow that delivers the patient to the isocenter automatically and accurately based on the targeted region identified by the 3D camera in accordance with protocol.

    Air-cooled System

    Offer great performance stability without water chiller therefore no equipment room needed.

    Extendable PET Axial FOV

    30cm, 24cm and more PET Axial Field of Views (FOV) that suit your clinical needs and future development.

    Extra Big Tunnel Clearance of
    59 cm (23.2 in)

    Create spacious room for larger patients and various accessories or postures.

    Leading Performance
    2.9 mm

    NEMA Spatial Resolution

    219 ps

    TOF Resolution

    Up to 181 cps/kBq¹

    Effective Sensitivity

    Max. 2 m (78.7 in) Co-Scan Range

    Allow efficient and comprehensive coverage for total-body imaging.

    Technical Details
    • Gantry
    • PET
    • CT
    Gantry



    Aperture

    70 cm（27.56 inch）

    Weight Capacity

    250 kg (551 lbs)

    Cooling Method

    Air cooling

    System Control

    DDP + CPAN

    Remote Audio System

    Yes

    Light Environment

    Purple, blue and white light with respiratory guide
    PET



    Crystal Material

    LYSO

    Crystal Size

    2.76 mm × 2.76 mm

    Spatial Resolution @1 cm

    2.9 mm

    TOF

    219 ps

    Scalable AFOV4

    24 cm, 30 cm, ...

    Effective Sensitivity @ 35 cm phantom1

    up to 181 cps/kBq
    CT



    Axial Coverage

    4 cm

    Maximum Rotation Speed

    0.3 s

    Number of Detector Rows

    80

    Maximum Slices per Rotation

    160

    Equivalent Tube Anode Storage Capacity

    7.5 MHU

    kV Settings

    70 kV, 80 kV, 100 kV, 120 kV, 140 kV

    Range of Tube Current

    6-833 mA (with 1 mA increment)

    DISCLAIMERS

    1 Data calculated with 35-cm object size.
    2 Work in progress. Not commercially available in all countries. Future availability cannot be guaranteed.
    3 Earl: EANM Research Ltd.
    4 uMI Panvivo 30 cm and 24 cm are FDA 510(k) cleared. uMI Panvivo 30 cm is CE MDR cleared.

    United Imaging does not make any claims regarding the safety and effectiveness of tracers that have not been approved by the FDA or CE.
    Onscreen reproduction and display may result in a certain degree of image-quality degradation.
